Technologies empowering efficiency

The ELEKTRA range consists of a range of gas metering units for lambda control with integrated electronic control system, integrated sensors and a throttle valve with actuator. The models come in various sizes from GMCU 30 to 160, which are suitable for handling pressure changes up to 2:1 and a pressure range of 40-250 mbar.

ELEKTRA



  • Gas Metering Units
  • GMCU 30
  • GMCU 42
  • GMCU 50
  • GMCU 85
  • GMCU 110
  • GMCU-II-110-FC
  • GMCU 160

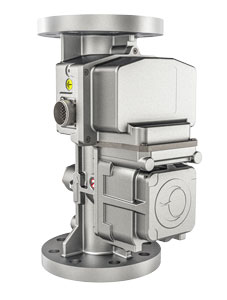

ELEKTRA Gas Metering Units

The ELEKTRA GMCU gas metering units are used as a fully integrated, autonomous unit for flow control, or as an extended variant for lambda control in stationary engines..

Gas Mixer Uebersicht

  • Module-based gas engine control system including gas flow control and complete lambda control
  • Compensates for fluctuating gas quality by precisely regulating the air-fuel ratio

GMCU 30

Technical data

  • Power range biogas: 30 ... 200 kW
  • Power range natural gas: 50 ... 400 kW
  • Length: 330 mm
  • Flange: 70 mm
  • Ø Flow: 30 mm
  • Flow signal accuracy: ± 5 %

GMCU 42

Technical data

  • Power range biogas: 100 ... 500 kW
  • Power range natural gas: 200 ... 800 kW
  • Length: 330 mm
  • Flange: 70 mm
  • Ø Flow: 42 mm
  • Flow signal accuracy: ± 5 %

GMCU 50

Technical data

  • Power range biogas: 200 ... 800 kW
  • Power range natural gas: 500 ... 1,500 kW
  • Length: 395 mm
  • Ø Flange: 200 mm
  • Ø Flow: 50 mm
  • Flow signal accuracy: ± 5 %

GMCU 85

Technical data

  • Power range biogas: 500 ... 2,000 kW
  • Power range natural gas: 1000 ... 3,000 kW
  • Length: 492 mm
  • Ø Flange: 220 mm
  • Ø Flow: 85 mm
  • Flow signal accuracy: ± 5 %

GMCU 110

Technical data

  • Power range biogas: 1,500 ... 3,000 kW
  • Power range natural gas: 2,000 ... 5,000 kW
  • Length: 570 mm
  • Ø Flange: 220 mm
  • Ø Flow: 110 mm
  • Flow signal accuracy : ± 5 %

GMCU-II-110-FC

Technical data

  • Power range biogas: 1,500 ... 3,000 kW
  • Power range natural gas: 2,000 ... 5,000 kW
  • Length: 560 mm
  • Ø Flange: 220 mm
  • Ø Flow: 110 mm
  • Flow signal accuracy: 5 %

GMCU 160

Technical data

  • Power range biogas: 2000 ... 5,000 kW
  • Length: 770 mm
  • Ø Flange: 285 mm
  • Ø Flow: 160 mm
  • Flow signal accuracy: ± 5 %
