HEINZMANN provides a wide range of actuators that cover practically all applications and can easily be installed on any gas engine. This means our devices are also ideal for retrofitting on existing systems. Our actuators are lightweight and compact, and offer not only a high degree of protection but also high nominal torques. We also supply integrated solutions, including actuators with integrated positioning electronics or actuators combined with throttle valves.

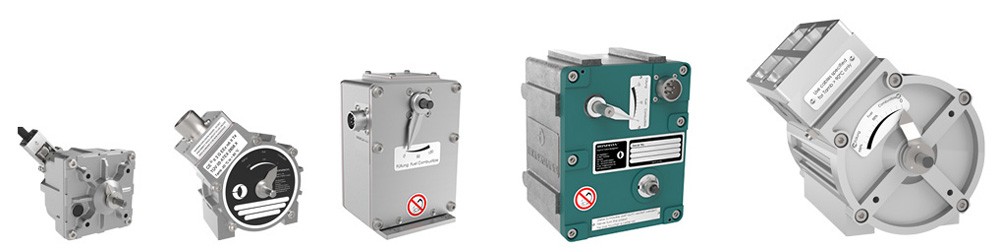

Actuators for Gas Engines
StG 3 / StG 3+
StG 6 / StG 10
StG 16 / StG 30 / StG 40
StG 2010 / 2040 / 2080
StG 2120
For decades now, HEINZMANN has been developing and producing high-performance actuators that can be used for virtually any application and can easily be installed on any gas engine. They are ideally suited for installation as original equipment and for retrofitting. They are fast and precise, offering complete reliability and durability.
These powerful and robust actuators are mainly used in small and medium-sized diesel and gas engines or turbines. They differ in their maximum torque and their operating temperature range. The actuators can be used in the harshest ambient conditions and at ambient temperatures of up to 150 °C.
Technical data
Diesel Engines
Gas Engines
Gas Turbines
Steam TurbinesThese actuators are mainly used in industrial engines. They are driven by analogue or digital HEINZMANN governors or by the JANUS positioning module.
Technical data
Diesel Engines Gas EnginesThese actuators are combined with analogue or digital governors or the HEINZMANN JANUS positioning module. They are mainly used in industrial engines.
Technical data
Diesel Engines Gas Engines
TurbinesThese models are the most powerful versions in the 2000 actuator range, and can be driven by analogue and digital HEINZMANN governors and by positioning modules. They are used in diesel, gas and dual-fuel engines and can be integrated with various throttle valves for hot and cold engine applications. The brushless permanent magnet system makes this actuator series ideal for use with gas engines.
Technical data
Diesel Engines Gas Engines
Dual-Fuel EnginesThe StG 2120 is tailored to engine and turbine applications and their specific ambient conditions, and is controlled by HEINZMANN digital governors or HEINZMANN positioning modules. Its higher explosion protection class makes it ideal for use in gas turbines and gas engines that are subject to more stringent requirements.
Technical data
Turbines
Throttle Valves with Actuators
DK 100 / StG 3

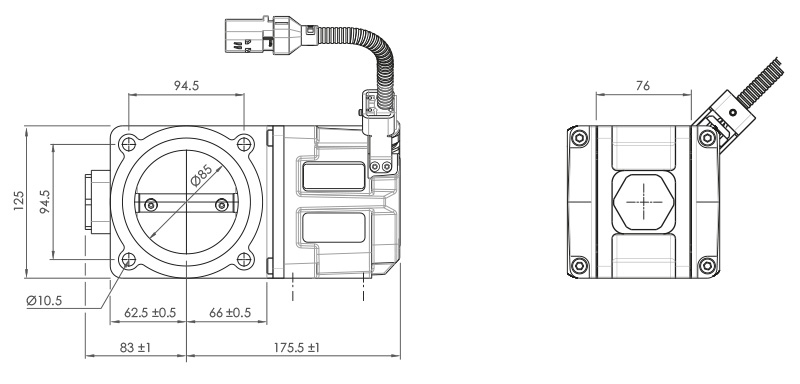

DK 140 / StG 3+

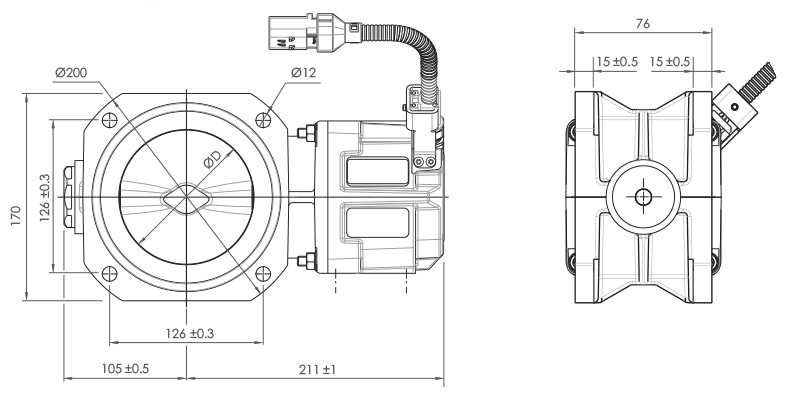

DK 200 / StG 3+

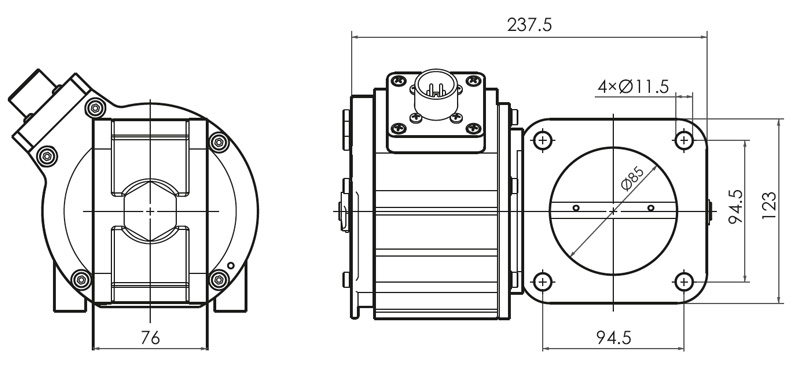

DK 140 / StG 2040
DK 100 / StG 2010

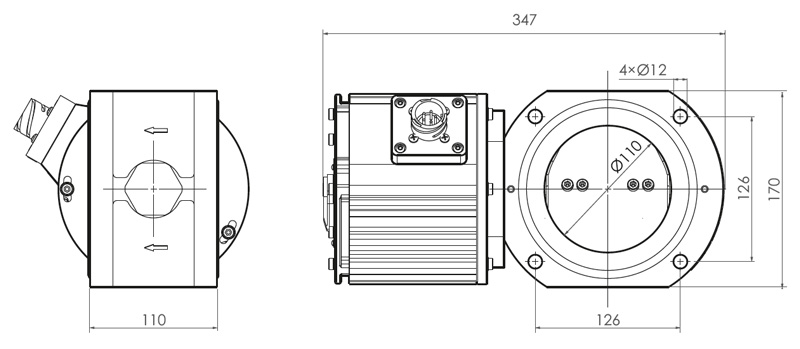

DK 200 / StG 2080
HEINZMANN throttle valves with actuators are the ideal components for ensuring optimal engine control, including for turbocharged engines. As throttle valves, they regulate the engine speed by metering the mixture accordingly, and boast an unusually long service life. What’s more, they can be used in special applications as a gas valve in order to control the air-fuel ratio. Alternatively, they can also be used as a turbo bypass valve.
Throttle Valve with Actuator

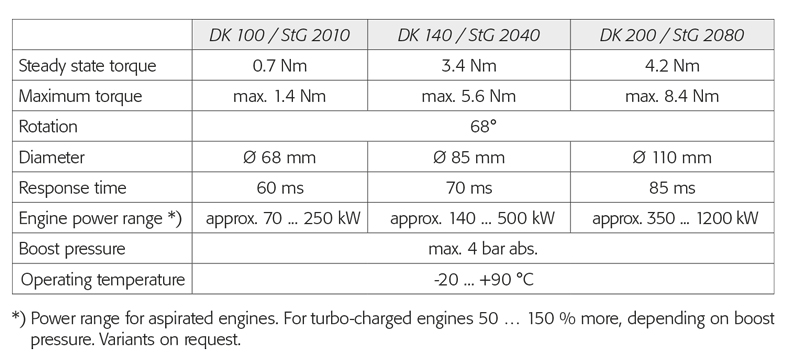

Technical data
Throttle Valve with Actuator
Technical data
Throttle Valve with Actuator
Technical data
Throttle Valve with Actuator
Technical data
Throttle Valve with Actuator
Technical data
Throttle Valve with Actuator
Technical data
