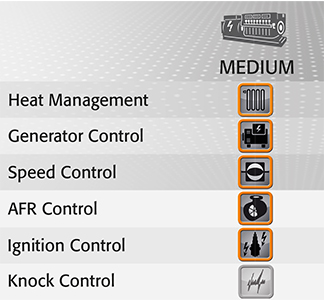

XIOSCHP MEDIUM
The MEDIUM version of the XIOSCHP system fulfills increased requirements: CHP control and monitoring, heat management, generator management and speed control, mixture control and ignition control. Knock control is optionally available. ggggg
Scope of Delivery:
- 1x XIOSCHP Controller
- 1x XIOSI/O Unit
- 7"-15" Touch-screen
Included:
- CHP Control
- Generator Control
- Speed Control
- AFR Control
- Ignition control
- 1 additional XIOSI/O Unit
Optional:
- Knock Control
- SCR Control
XIOSCHP EXTENDED
XIOSCHP EXTENDED offers comprehensive functions and I/Os for both extended and multiple systems: CHP control and monitoring, heat management, generator management and speed control, AFR control, ignition control and knock control.
Scope of Delivery:
- 1x XIOSCHP Controller
- 2x XIOSI/O Units
- 7"-15" Touch-.screen
Included:
- CHP Control
- Generator Control
- Speed Control
- AFR Control
- Ignition Control
- Knock Control
- 2 additional XIOSI/O units
Optional:
- SCR Control

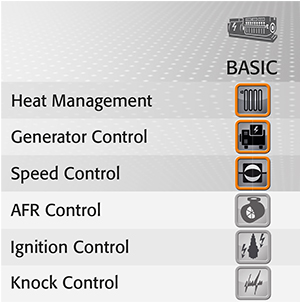

XIOSCHP BASIC
The BASIC version covers standard CHP unit functionalities; CHP control and monitoring; heat managment, generator control and speed control. Optional functions are AFR control, ignition control and knock control.
Scope of Delivery:
- 1x XIOSCHP Controller
- 7"-15" Touch-screen
Included:
- CHP Control
- Generator Control
- Speed Control
Optional:
- AFR Control
- Ignition Control
- Knock Control
Speed Control
- Integrated speed control
- Fast reaction on speed and load changes
- Combination with all HEINZMANN actuators possible

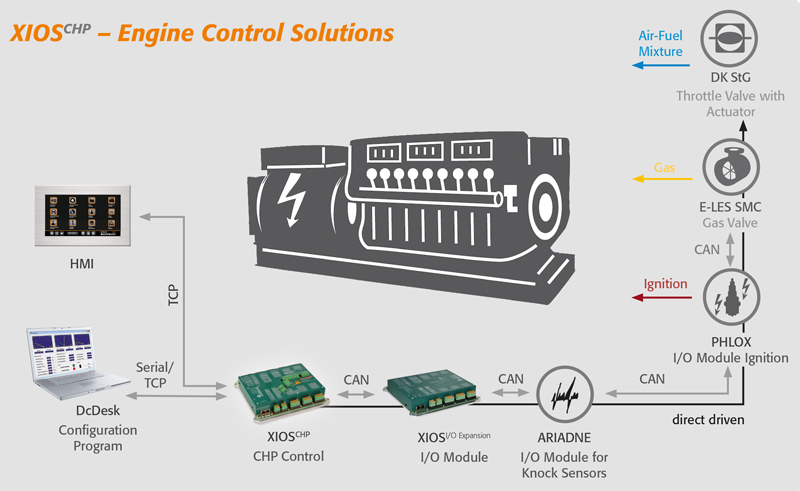

Engine Control
XIOSCHP combines all control strategies of the different control solutions in one device. This allows an optimal engine reaction on changes in current operating conditions.
Speed Control
AFR Control
Ignition Control
Speed Control
- Fast reaction on speed and load changes
- Combination with all HEINZMANN actuators possible
AFR Control
- Power, lambda or NOx feedback
- Specific control solutions for different gas qualities
Ignition Control
- Speed and load dependent ignition timing
- Autospark function to reduce spark plug wear
Engine Control
XIOSCHP combines all control strategies of the different control solutions in one device. This allows an optimal engine reaction on changes in current operating conditions.
Speed Control
AFR Control
Ignition Control
Knock Control
Speed Control
- Fast reaction on speed and load changes
- Combination with all HEINZMANN actuators possible
AFR Control
- Power, lambda or NOx feedback
- Specific control solutions for different gas qualities
Ignition Control
- Speed and load dependent ignition timing
- Autospark function to reduce spark plug wear
Knock Control
- Monitoring of knocking combustion
- Ignition angle correction and load reduction
Engine Management
- Integrated speed control
- Integrated air-fuel ratio control with closed loop power, lambda sensor, NOx sensor
- Control of PHLOX II & III or support of third party ignition control unit
- Control of ARIADNE Knock Control System or support of third party knock control unit
- Oil temperature & pressure monitoring
- Manifold/boost air temperature/pressure monitoring
- Crank case pressure monitoring
- Overspeed protection
